Product Description
Product introduction:

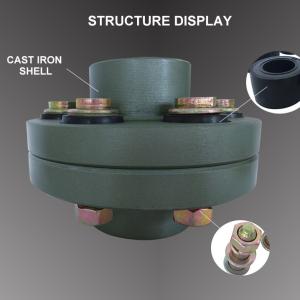

1.FCL elastic pin coupling with simple structure, easy installation and replacement;
2. During its operation, the vibration generated by mechanical transmission can be buffered and the uneven motion can be absorbed The impact energy balance of the axial and radial relative displacement of the shaft significantly improves the quality and stability of mechanical operation.
3. Widely used in various medium and small power transmission shafts driven by electric motors with little load.For example: reducer, crane, compressor, textile machine, pump, speed change machine and so on.
Features of FCL elastic coupling:
(1) good vibration absorbability enables the movement of the active shaft to be smoothly transmitted to the passive shaft.There is no axial thrust in transmission.
(2) easy to disassemble and assemble, as long as the coupling bolts are removed, the connection between active and passive can be separated.
(3) if the relative displacement of the two shafts can be kept within the specified range after installation and adjustment, the coupling will have satisfactory service performance and long working life.
| Product Name | Aluminium Motor Couplings Flexible FCL |
| DN mm | 12~850mm |
| Rated Torque | 100~2500000 N·m |
| Allowable speed | 4000~460 kN·m |
| Material | 45#steel |
| Application | Widely used in metallurgy, mining, engineering and other fields. |
| Type | Max torque | Max speed | D | D1 | d1 | L | C | n-M | Weight |
| N.m | r/min | kg |
| FCL90 | 4 | 4000 | 90 | 35.5 | 11 | 28 | 3 | 4-M8×50 | 1.7 |
| FCL100 | 10 | 4000 | 100 | 40 | 11 | 35.5 | 3 | 4-M10×56 | 2.3 |
| FCL112 | 16 | 4000 | 112 | 45 | 13 | 40 | 3 | 4-M10×56 | 2.8 |
| FCL125 | 25 | 4000 | 125 | 50 | 13 | 45 | 3 | 4-M12×64 | 4 |
| FCL140 | 50 | 4000 | 140 | 63 | 13 | 50 | 3 | 6-M12×64 | 5.4 |
| FCL160 | 110 | 4000 | 160 | 80 | 15 | 56 | 3 | 8-M12×64 | 8 |
| FCL180 | 157 | 3500 | 180 | 90 | 15 | 63 | 3 | 8-M12×64 | 10.5 |
| FCL200 | 245 | 3200 | 200 | 100 | 21 | 71 | 4 | 8-M20×85 | 16.2 |
| FCL224 | 392 | 2850 | 224 | 112 | 21 | 80 | 4 | 8-M20×85 | 21.3 |
| FCL220 | 618 | 2550 | 250 | 125 | 25 | 90 | 4 | 8-M24×110 | 31.6 |
| FCL280 | 980 | 2300 | 280 | 140 | 34 | 100 | 4 | 8-M24×116 | 44 |
| FCL315 | 1568 | 2050 | 315 | 160 | 41 | 112 | 4 | 10-M24×116 | 57.7 |
| FCL355 | 2450 | 1800 | 355 | 180 | 60 | 125 | 5 | 8-M30×50 | 89.5 |
| FCL400 | 3920 | 1600 | 400 | 200 | 60 | 125 | 5 | 10-M30×150 | 113 |
| FCL450 | 6174 | 1400 | 450 | 224 | 65 | 140 | 5 | 12-M30×150 | 145 |
| FCL560 | 9800 | 1150 | 560 | 250 | 85 | 160 | 5 | 14-M30×150 | 229 |
| FCL630 | 15680 | 1000 | 630 | 280 | 95 | 180 | 5 | 18-M30×150 | 296 |
