Flexible Pin Bush Coupling Cast Iron Power Transmission Couplings

Name: Flexible Pin Bush Coupling Cast Iron Power Transmission Couplings
Brand: jude
Price: 1 USD

Brand Name : jude

Place of Origin : cangzhou、china

Packaging Details : Wooden Box Or Customized

Supply Ability : 1000 Set/Sets per Month

Certification : CE、ISO

Model Number : FCL

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Structure : Pin Bush

Flexible or Rigid : Flexible

Standard or Nonstandard : Standard

Material : Steel

Product name : FCL Flexible Coupling

Type : Elastic Sleeve

Body Material : Cast Iron

Surface Treatment : Carburizing, blackening, electroplating, quenching.

heat treatment : High frequency quenching heat treatment

The radial displacement : 0.2~0.6mm

Application : Pumps

MAX torque : 4-15680

speed : 1000-4000

MOQ : 1 Set

Port : Tianjin

Contact Now

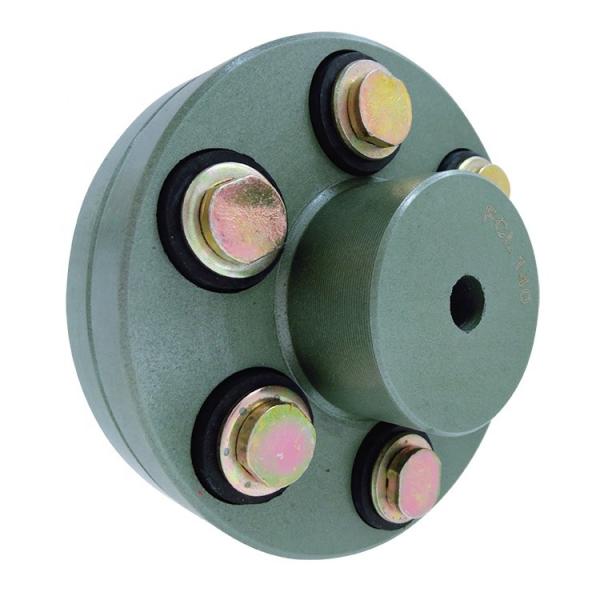

Flexible Pin Bush Couplings For Power Transmission FCL pin bush coupling

products images

The function of a flexible coupling is to transmit torque from one shaft to another and is particularly use full in case where limited misalignment may occur and also to absorb shock loads.

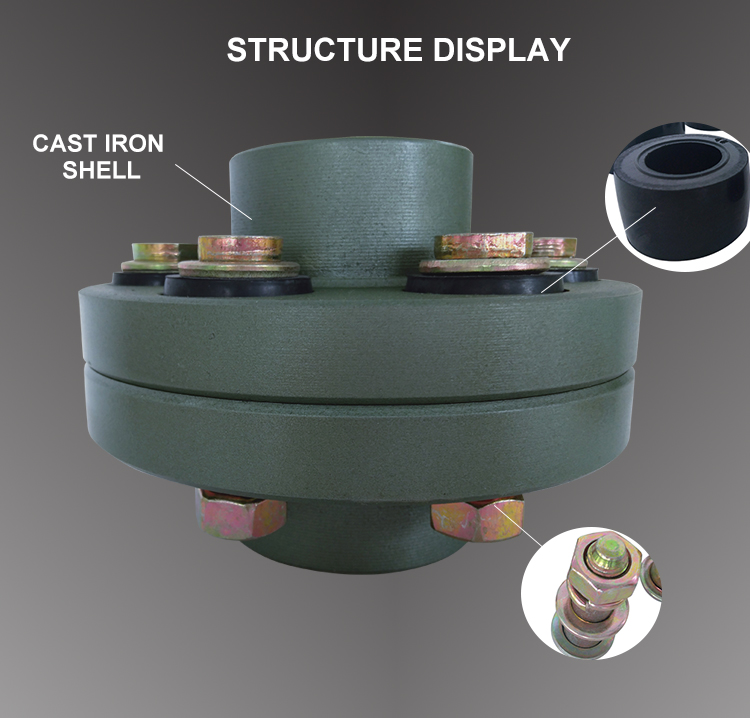

The FCL Bush Type Flexible Coupling of the cushioned drive type. Transmits the torque through high tensile steel bolts to the machine input shat. Highly developed rubber compounds are bushes to absorb loads. Torsional vibrations and slight misalignments.

Simple and compact in construction the Coupling is capable of transmitting high torques at maximum speeds. The flanges are manufactured with cast iron, this type of coupling permits drive in either direction and require neither lubrication nor adjustment after fitting. The flexible business remains unaffected water, dust and atmospheric conditions. Machines which are to be coupled by flexible couplings should first be aligned with all possible accuracy. The capacity of the coupling will then deal with misalignments which occur by reason of temperature variations or heavy shaft loading. Setting of machine foundations of bearing wear will also cause extra loading to be imposed on the coupling.Any or all of these conditions can occur once the machines have been coupled. Flanges are bored to suit requirements and are mayweed to British Standard Specification, unless otherwise stated. They can also be supplied with the listed minimum bore to permit machining on site.

Flexible Pin Bush Coupling Cast Iron Power Transmission Couplings

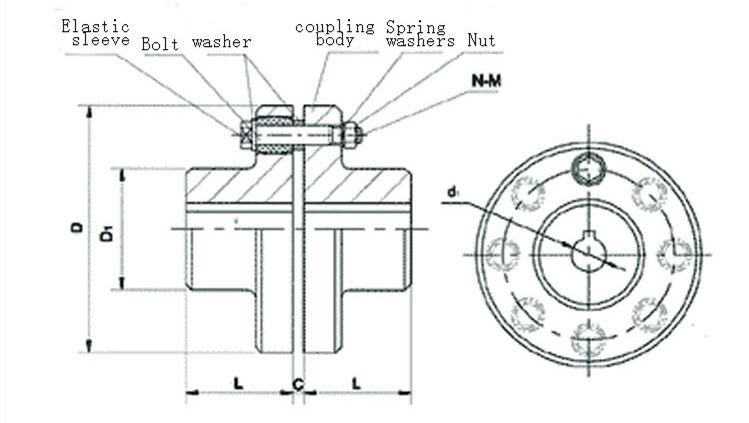

Type	Max torque	Max speed	D	D1	d1	L	C	n-M	Weight
Type	N.m	r/min	D	D1	d1	L	C	n-M	kg
FCL90	4	4000	90	35.5	11	28	3	4-M8×50	1.7
FCL100	10	4000	100	40	11	35.5	3	4-M10×56	2.3
FCL112	16	4000	112	45	13	40	3	4-M10×56	2.8
FCL125	25	4000	125	50	13	45	3	4-M12×64	4
FCL140	50	4000	140	63	13	50	3	6-M12×64	5.4
FCL160	110	4000	160	80	15	56	3	8-M12×64	8
FCL180	157	3500	180	90	15	63	3	8-M12×64	10.5
FCL200	245	3200	200	100	21	71	4	8-M20×85	16.2
FCL224	392	2850	224	112	21	80	4	8-M20×85	21.3
FCL220	618	2550	250	125	25	90	4	8-M24×110	31.6
FCL280	980	2300	280	140	34	100	4	8-M24×116	44
FCL315	1568	2050	315	160	41	112	4	10-M24×116	57.7
FCL355	2450	1800	355	180	60	125	5	8-M30×50	89.5
FCL400	3920	1600	400	200	60	125	5	10-M30×150	113
FCL450	6174	1400	450	224	65	140	5	12-M30×150	145
FCL560	9800	1150	560	250	85	160	5	14-M30×150	229
FCL630	15680	1000	630	280	95	180	5	18-M30×150	296
